Pulse Count Selectable Electro-Magnetic Rotary Sensor ezABSO® Pulse Series

Description

Pulse Count Selectable Electro-Magnetic Rotary Sensor ezABSO

ezABSO® is a brand new Rotary Encoder which is adopted Electromagnetic Induction Type.
Position detection is available ezABSO® singly due to the converter system is incorporated inside.
Equipped with vibration measurement function.

Download   Contact

Advantage

Products in Comparison

Item Products in Comparison
ezABSO Advantage General Rotary Encoder (PLG)
Environmental resistance Electromagnetic Induction Type Optical Type
Components
and life span
NO
There is no light emitting, light receiving elements, nor an electrolytic capacitor inside the sensor, which is breakable.
YES
The life span of general light emitting and light receiving elements is forty thousand hours. Being exposed to hotter temperature accelerates deterioration process even further. Some PLGs are used an electrolytic capacitor.
Resistor NO Use Use
The adjusted value might fluctuate.
Durability HIGH DURABILITY
Light and rigid Glass Epoxy Substrate makes sensing part more resistant to vibration shock. The circuit is protected by moisture-proof coating resin.
LOW DURABILITY
There is a glass slit disk which is vulnerable to vibrations and shocks, and it leads to cracks easily.
Vibration resistance 200m/s2 100m/s2
Shock resistance 2000m/s2 1000m/s2
Protection rating IP66
* When the shaft rotates, the shaft seal is IP64.
IP55~66(Depends on types)
Pulse count selection YES
The output pulse number can be changed by internal switch.
NO
The output pulse number depends on glass slit, and cannot be changed.
Vibration measurement function
NEW
YES
* Measured by the vibration sensor IC inside the sensor.
NO

Model coding

Standard model: EZA-SA[1][2]-14

* EZA-SA[1][2]-14 is an upward compatible product of the conventional product EZA-SA[1][2]-04.

[1]Output system
Code Specification
PL Push-pull
DR Line driver
[2]Pulse Rate [P/R] Option
Six output patterns are available. Select the following symbols [A] [B] [C] [D] [E] [F] for [2] of the model.
The number of pulses of [A] to [F] can be set by the internal switch on the rear of the sensor.
[A]
[0] 100 [1] 200 [2] 300 [3] 500
[4] 512 [5] 600 [6]1000 [7]1024
[8]1200 [9]1500 [A]1536 [B]2000
[C]2048 [D]2400 [E]3600 [F]4096
[B]
[0] 10 [1] 128 [2] 192 [3] 256
[4] 360 [5] 384 [6] 400 [7] 720
[8] 800 [9] 900 [A]1600 [B]1800
[C]2500 [D]2560 [E]3000 [F]8192
[C]
[0] 25 [1] 100 [2] 120 [3] 200
[4] 300 [5] 400 [6] 500 [7] 600
[8] 900 [9]1200 [A]1500 [B]1536
[C]2000 [D]2048 [E]2400 [F]2500
[D]
[0] 3 [1] 4 [2] 20 [3] 24
[4] 30 [5] 40 [6] 60 [7] 150
[8] 250 [9] 600 [A] 750 [B] 900
[C]1200 [D]2800 [E]5000 [F]6000
[E]
[0] 5 [1] 25 [2] 36 [3] 60
[4] 100 [5] 128 [6] 192 [7] 200
[8] 600 [9] 900 [A]1200 [B]1500
[C]1800 [D]2400 [E]3000 [F]5000
[F]
[0] 5 [1] 25 [2] 36 [3] 200
[4] 600 [5]1024 [6]1200 [7]1500
[8]2048 [9]2400 [A]2500 [B]3000
[C]4096 [D]8192 [E]12000 [F]-----
Internal switch for pulse rate option

Specification

Specification

Item Specification
Sensor model EZA-SAPL[ ]-14 *1 EZA-SADR[ ]-14 *1
Shaft diameter Φ15
Power supply voltage 10.8~26.4VDC
Current consumption 150mA or less (At no load)
Pulse number (Number of divisions) Switchable from 16 kinds of settings
Output circuit Push-pull Line driver (Equivalent to AM26C31 manufactured by Texas Instruments Incorporated)
Maximum response frequency for pulse output
200kHz 300kHz
Permissible mechanical speed 6000[r/min]
Protection rating IP66
* When the shaft rotates, the shaft seal is IP64.
Interconnecting sensor cable 2m

*1 [ ]: Pulse Rate [P/R] Option



Output waveform

Pulse output

Dimensions

  • PDF DownloadEZA-SAPL[ ]-14
    EZA-SADR[ ]-14

Recommended Couplings : Micro-coupling (Manufactured by Daido Precision Industries Ltd.)
※ If there is a possibility of electric corrosion on the bearing, an insulated micro coupling is recommended.

L type flange-mount fixture (Mounting bracket option)

Model : RB-11-04

L type flange-mount fixture

Dimensions

  • PDF DownloadEZA-SAPL[ ]-14
    With L type flange-mount fixture RB-11-04

Recommended Couplings : Micro-coupling
   (Manufactured by Daido Precision Industries Ltd.)
※ If there is a possibility of electric corrosion on the bearing, an insulated micro coupling is recommended.

Contact us about other L type flange-mount fixture (Mounting bracket option).

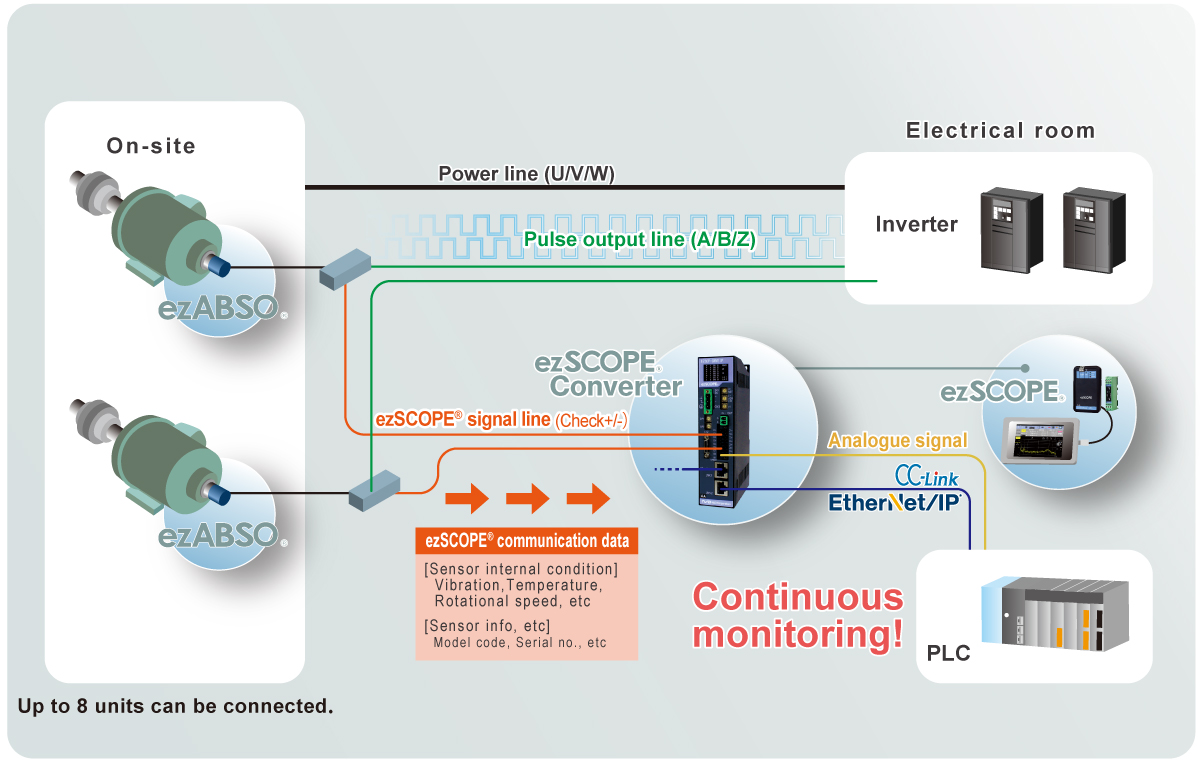

ezSCOPE® Converter  NEW

Continuous monitoring of equipment with the host device for scheduled maintenance and inspection.

ezSCOPE® Converter is a unit for transmitting internal data of ezABSO® to the host device such as a PLC via Fieldbus, Field network and analog signals.
By continuously monitoring the internal data of ezABSO® with the host device such as a PLC, it can be used to manage equipment tendency.

Number of connecting units: ezABSO® max. 8 units / 1 unit
Network: CC-Link, EtherNet/IP

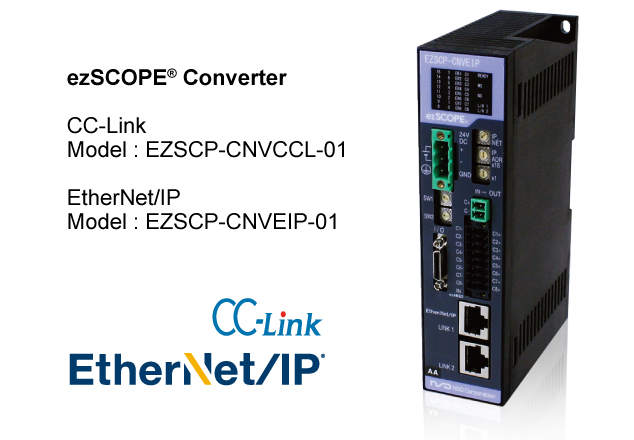

ezSCOPE® Converter, CC-Link, Model: EZSCP-CNVCCL-01, EtherNet/IP, Model: EZSCP-CNVEIP-01

Specification

Item Specification
Model EZSCP-CNVCCL-01 (CC-Link)
EZSCP-CNVEIP-01 (EtherNet/IP)
Power supply voltage 24VDC±15% (including ripple)
Power consumption 7W or less
Insulation resistance 20MΩ or more between external DC power terminals and ground
(by 500 VDC insulation resistance tester)
Withstand voltage 500 VAC, 60Hz for 1 minute between external DC power terminals and ground
Vibration resistance 20m/s2 10~500Hz, 10cycles of 5 minutes in 3 directions, conforms to JIS C 0040 standard
Ambient operating temperature 0~+55℃ (No freezing)
(Surrounding air temperature rating of 55℃ maximum)
Ambient operating humidity 20~90 %RH (No condensation)
Ambient operating environment Free from corrosive gases and excessive dust
Grounding Must be securely grounded (ground resistance of 100 ohm or less)
Dimensions (mm) W×H×D 39×163×93 (including protrusions)
Mass Approx. 0.3kg
Item Specification
Number of connectable ezABSO Max. 8 units
Number of connectable ezSCOPE 1 unit

CC-Link compatible model

Item Specification
Model EZSCP-CNVCCL-01
Communication specification CC-Link Ver.1.10
Number of stations occupied 2 stations
Stations type Remote device stations
Number of remote points Remote input (RX): 64 points
Remote output (RY): 64 points
Remote register (RWr): 8 words
Remote register (RWw): 8 words
Transmission rate 10M / 5M / 2.5M / 625k / 156kbps

EtherNet/IP compatible model

Item Specification
Model EZSCP-CNVEIP-01
Physical layer Ethernet, 10Base-T, 100Base-TX, ISO/IEC 8802-3
Number of communication ports 2 (connector: RJ45)
Baud-rates Auto-Negotiation (100 / 10Mbps)
Communication format Auto-Negotiation (Full / Half-Duplex)
Communication setting method Automatic setting by auto-Negotiation
Communication cycle time (RPI) 10~3200ms (Default: 20ms)
EtherNet/IP CIP protocol CIP Conformance Test CT-18, Device Level Ring (DLR)
Recommended cable CAT-5e STP straight cable
Cable length Between nodes: Max. 100m
IP address setting method Setting by the switch (Class C)
Receiving it from BOOTP or DHCP server automatically (Class A, B, and C)
Web server (Class A, B, and C)

ezSCOPE®

ezSCOPE is a visualization tool for ezABSO.

By connecting ezSCOPE to ezABSO, the data in the sensor is imported into the PC.
The recorded data can be displayed as graphics (absolute position, speed, vibration) and data values (numerical value) on the PC monitor. ezSCOPE also has a data storage capability.

* Data can be transmitted by infrared rays to the ezSCOPE main unit using the optional infrared transmission module.

Infrared transmission module (option), Model code: EZSCP-TXMDL-01, ezSCOPE main unit Model: EZSCP-01

Specification

Item Specification
Model EZSCP-01
Power supply Power supply by USB (There is no battery at ezSCOPE)
Display Data Sensor internal condition Absolute position, speed, vibration speed real-time data,
vibration speed value, internal temperature, sensor error, etc
Sensor info, etc Model code, Serial no., etc
PC connection USB Ver1.1 (Full speed)
Data save Saves the file as CSV format by monitor's operation
Dimensions (mm) w×H×D 69×115×20 (Protruding parts not included)

Connection example

Connection example



Vibration Data - Easy Diagnosis -  NEW

Vibration Data

Integrating a vibration sensor IC into the ezABSO installs a new function for measuring and monitoring the vibration applied to the main body from the outside.
With this function, it is possible to measure the vibration exerted on the engine with ezABSO. *1
Please use it for easy diagnosis of connected devices as one of the data collected by IIoT.

*1: Only when ezABSO is installed integrally with the engine (see figure above).

ezABSO® Usage Image

Usage Image
